GE AZHS12DRXXA 12,000 BTU Zoneline® Heat Pump Fixed Speed Unit with ICR, 230/208v
$1,299.00
SKU: AZHS12DRXXA
Delivery & Installation
Available
Satisfaction
Guaranteed

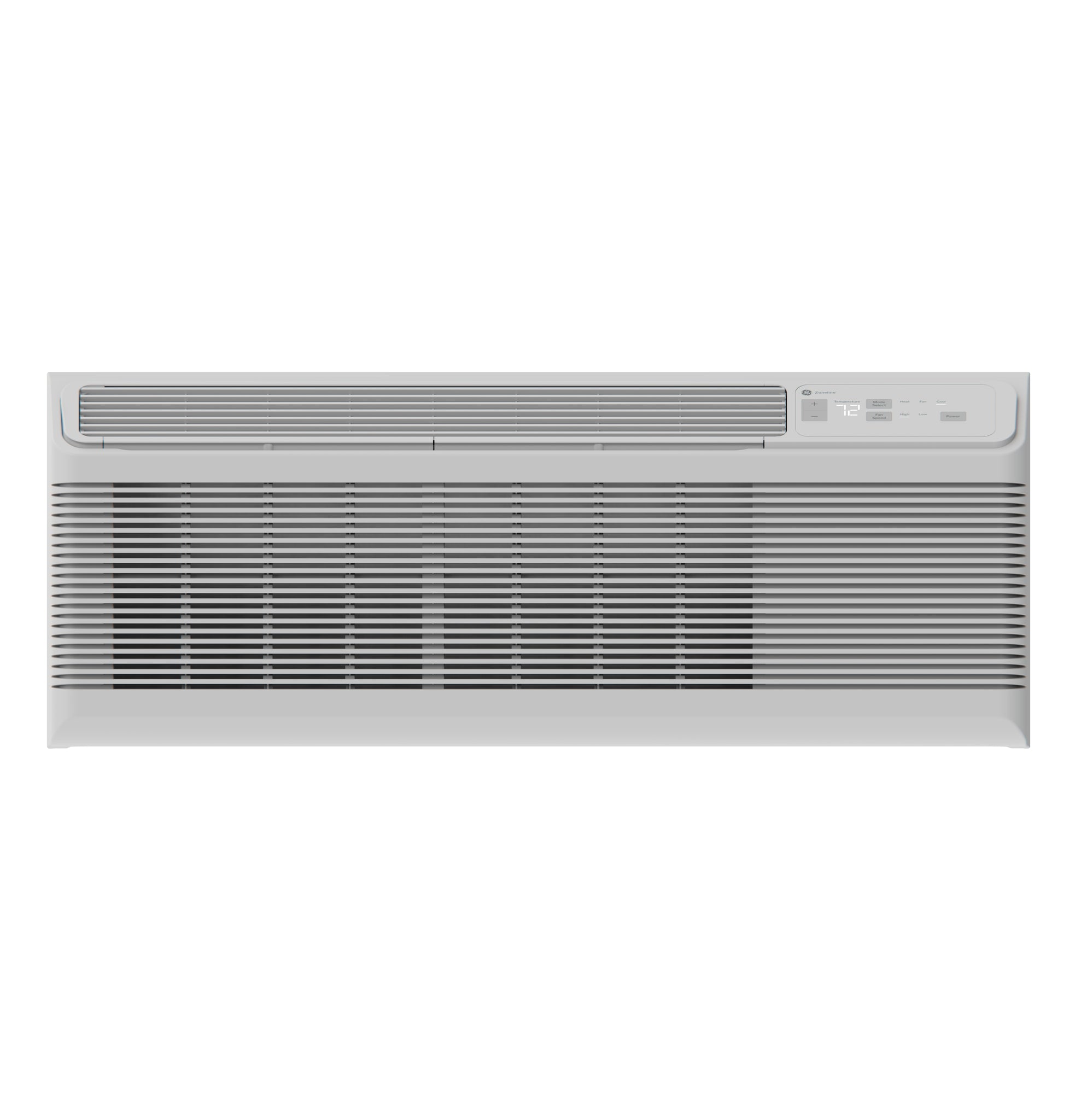

GE Zoneline® Heat Pump – AZHS12DRXXA
Features
- R454B - Most environmentally friendly refrigerant on the market
- ICR (Internal condensate removal)
- Heat pump down to 25°F
- Boost heat option

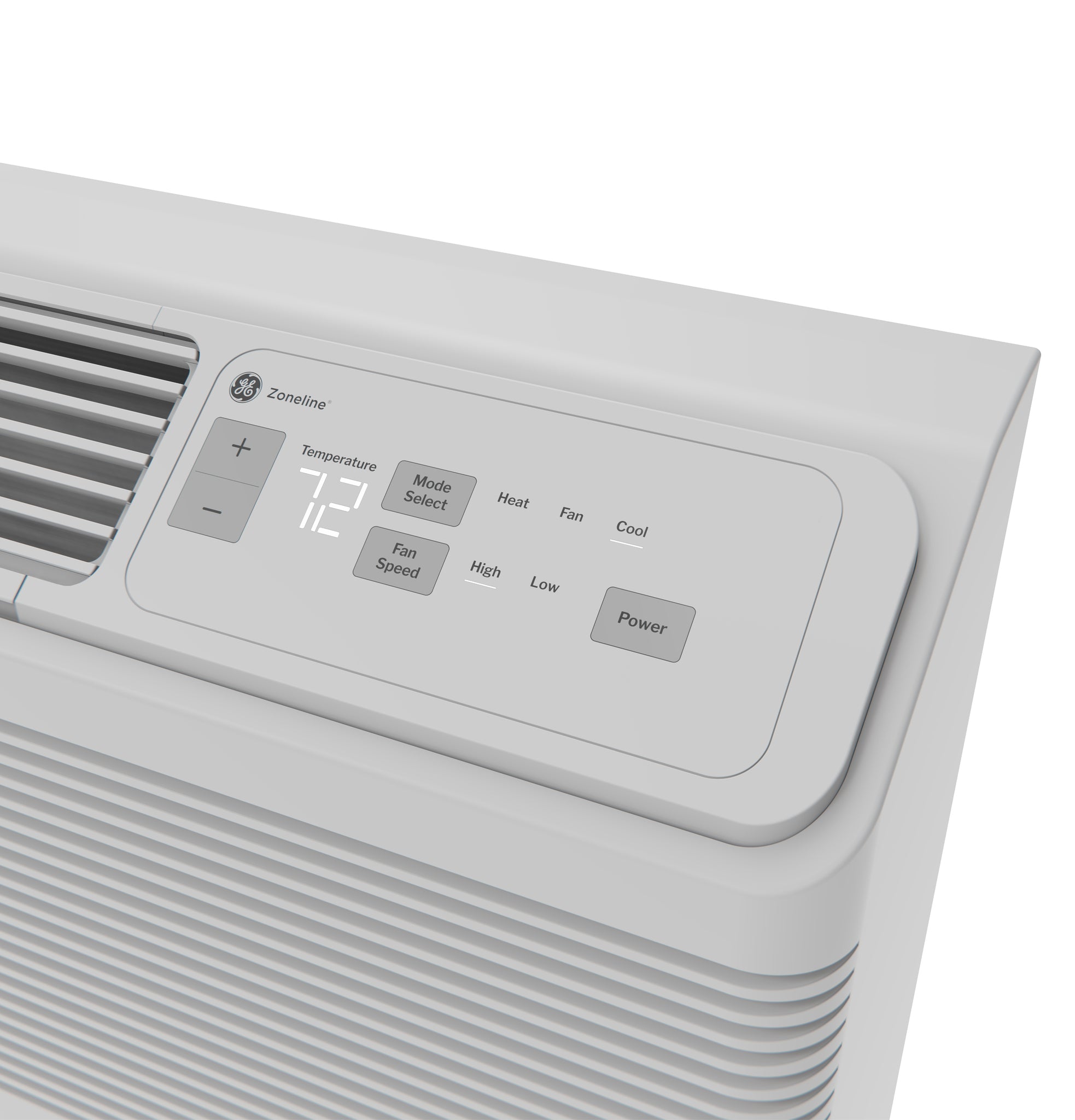

- Electronic touch controls with LED display
HVAC Contractors, Builders, Property Hotel Managers – Call 781-721-0123, Email or Request a Quote for Wholesale
CAPACITY
| Cooling BTUH (MAX) | 12100.000000 |
| CFM Indoor Fan Low | 305 |
| CFM Indoor Fan High | 440 |
| Cooling EER (BTUH / Watt) | 11.6/11.6 |
| Dehumidification (pts./hr.) | 3.1 (High Speed) |
| Vent CFM (high fan at zero ESP) | 43.2 |
| Cooling BTUH (MIN) | 11900 |
FEATURES
| Zoneline Features |
"Smart Fan" Fan Cycle Control Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Universal Heaters |
| Louver Style | Reversible |
| Refrigerant Charge (oz.) | 30.5 |
| Control Type |
Standard Microcomputer Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Fan Speed Selections |
Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Sensible Heat Ratio | 0.75 |
| Power Factor | 95 |
| Refrigerant Type | R454B |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Filter Type |
Rigid Frame Slide-Out |
| Manual Vent Control | Hidden |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 24-Step |
| Heat Sentinel | Yes |
| Internal Condensate Removal (ICR) | Yes |
| Fan Speed Control | Yes |
| Freeze Sentinel | Yes |
| Temperature Range | 60 - 85 F |
| Corrosion Treated | Yes |
| Heat - Cool | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Heating - Reverse Cycle - COP | 3.7/3.8 |
| Vent Control | 3-position |
| Venting Features |
Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Heating System | Heat Pump With Backup Resistance Heat |
